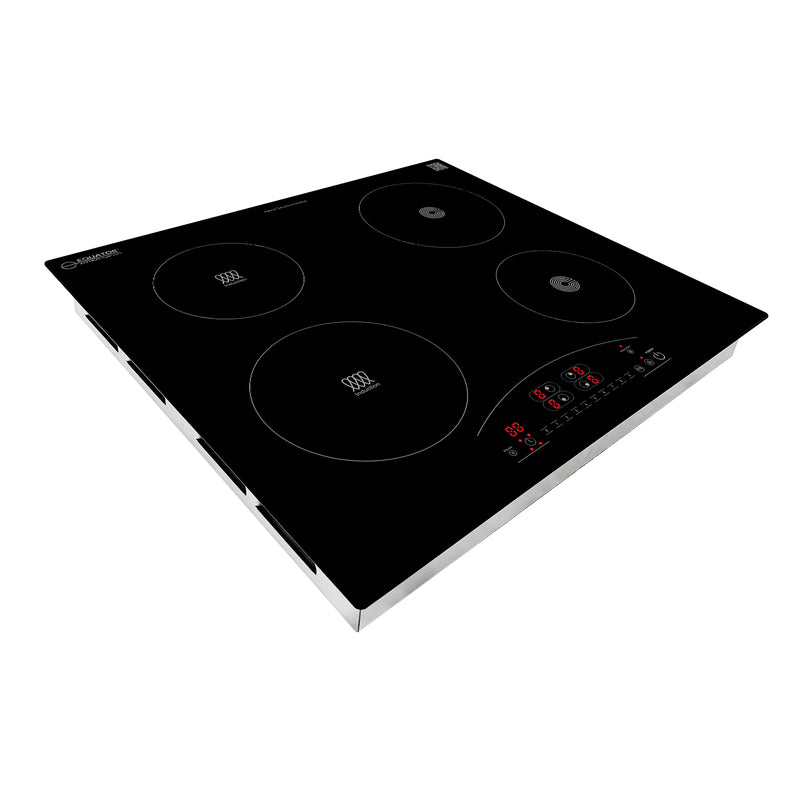

Equator 24 inch Electric Hybrid CERAMIC-INDUCTION 4 Burner Cooktop 9 Power 220V
Categories: -ADU, All Products, Hybrid Cooktop, Tiny Home
Model: EHC 23422
Price:$440.00
Couldn't load pickup availability
Installation at additional cost - Contact for more details
Save with - Renewed
BEST OFFERS 🏷️
6% Discount on the total cart value
Min Spend $3,000
8% Discount on the total cart value
Min Spend $5,000
10% Discount on the total cart value
Min Spend $10,000

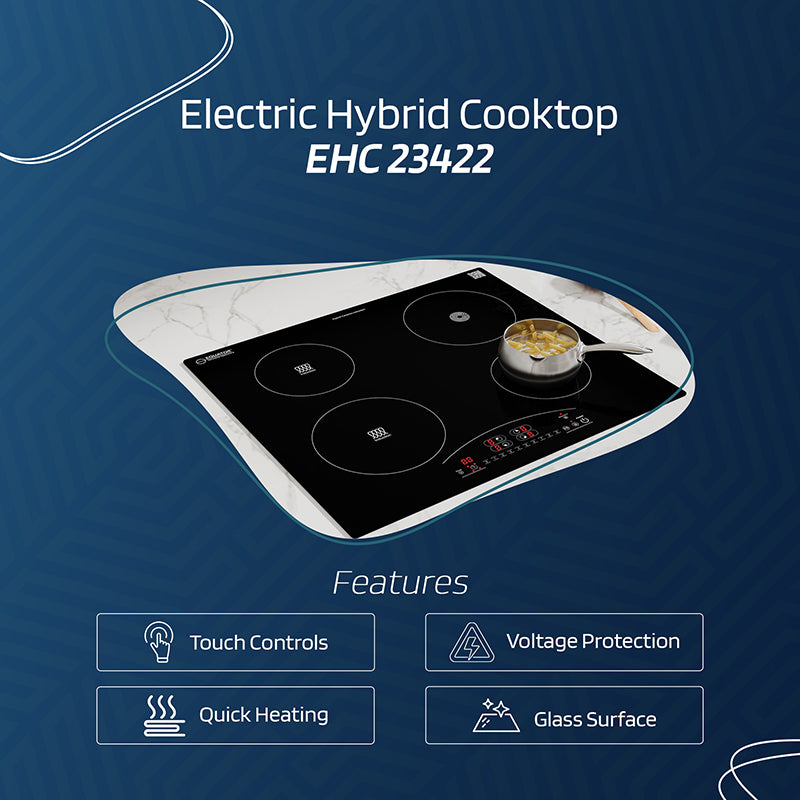

EHC 23422: The Cooktop That Lets You Choose Your Heat, Your Way
Some nights call for searing steak on a whisper of magnetic current. Others, for slowly stirring a sauce over radiant ceramic warmth. The Equator EHC 23422 Hybrid Cooktop gives you both. With two induction burners and two ceramic zones, this 24-inch marvel brings the best of both technologies into one compact, built-in frame—crafted for culinary freedom.
Its surface, a gleaming pane of black vitroceramic glass, responds instantly to your touch. Power, pause, keep warm—it all happens under your fingertips. Whether you are a precise technician or a relaxed improviser, the EHC 23422 is designed to adapt to your rhythm, not the other way around. It doesn’t just cook. It collaborates.

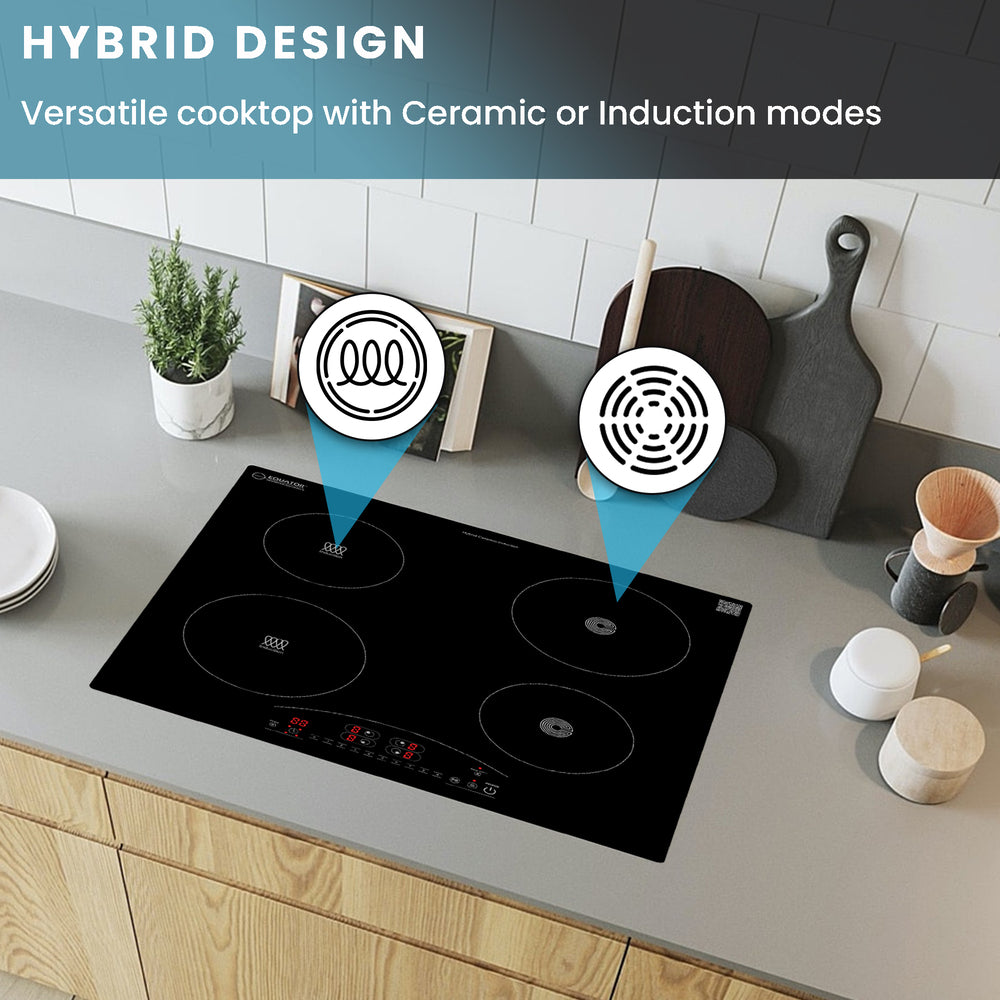

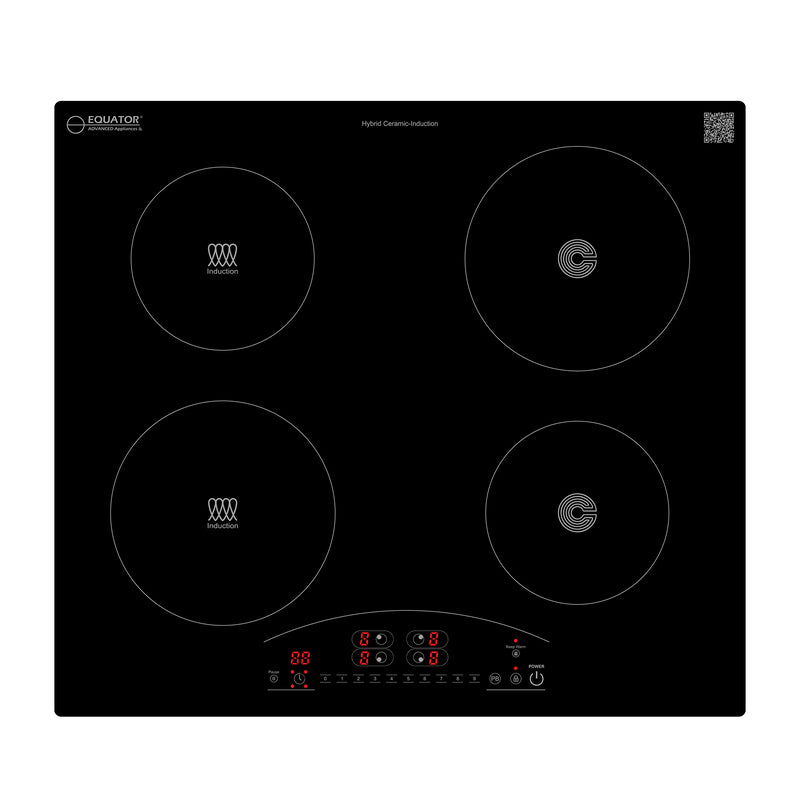

- Hybrid Heat Zones- Includes two induction burners with pan sensors and two ceramic burners, allowing you to tailor your cooking method for each dish

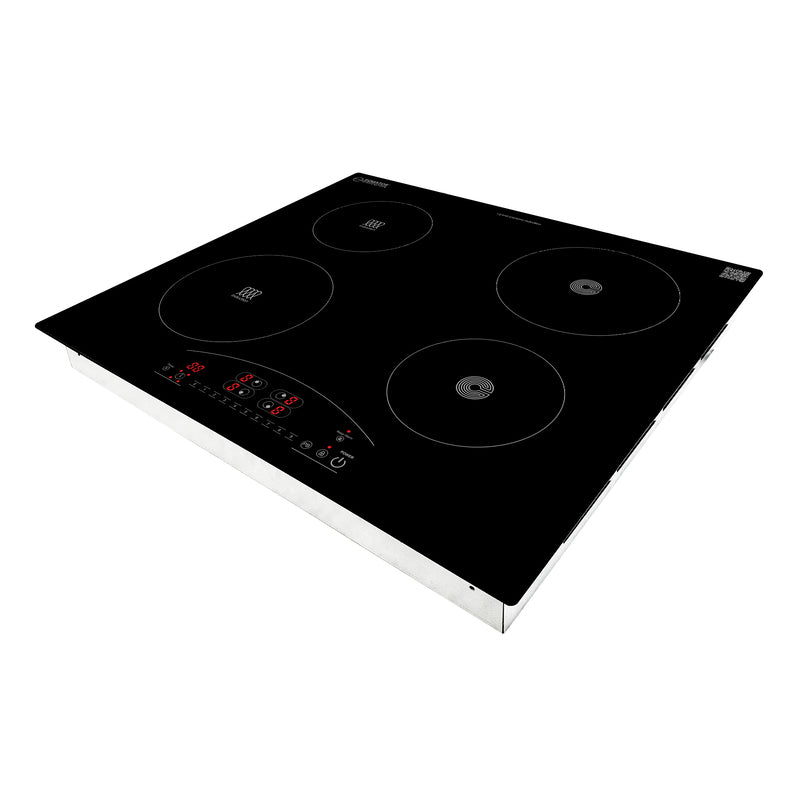

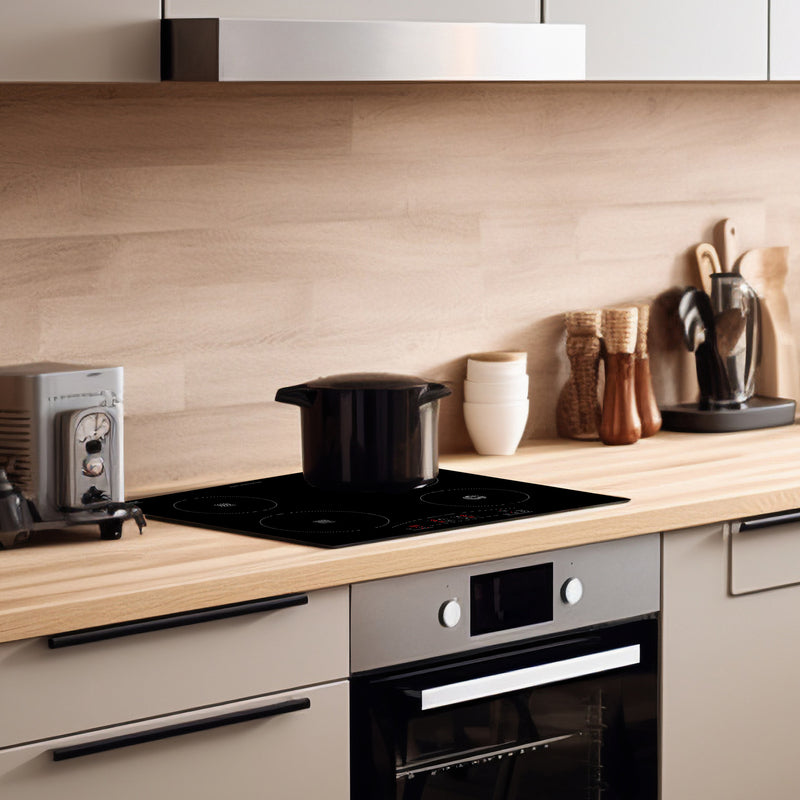

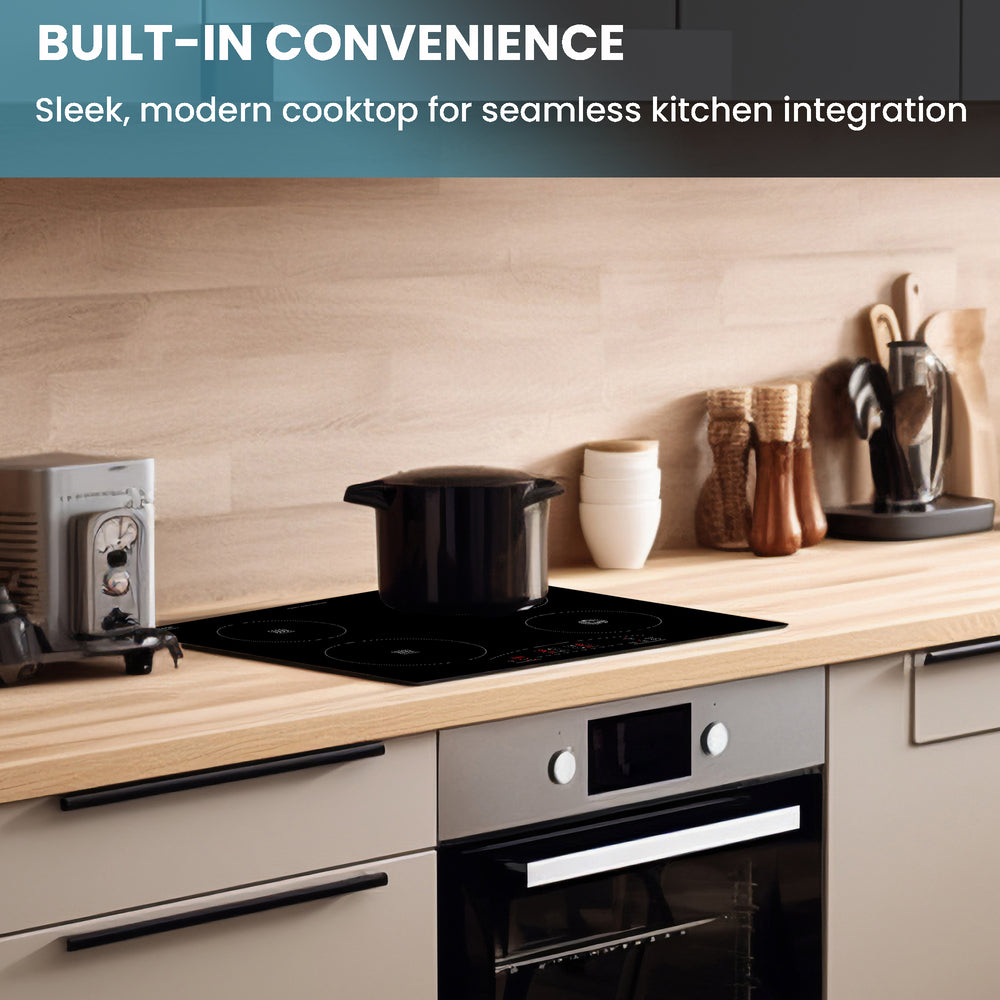

- Compact Built-In Design- At just 2.2 inches high and 23 inches wide, it fits elegantly into small kitchens or galley layouts with a cut-out size of 3.1 inch x 22 inch x 19.5 inch

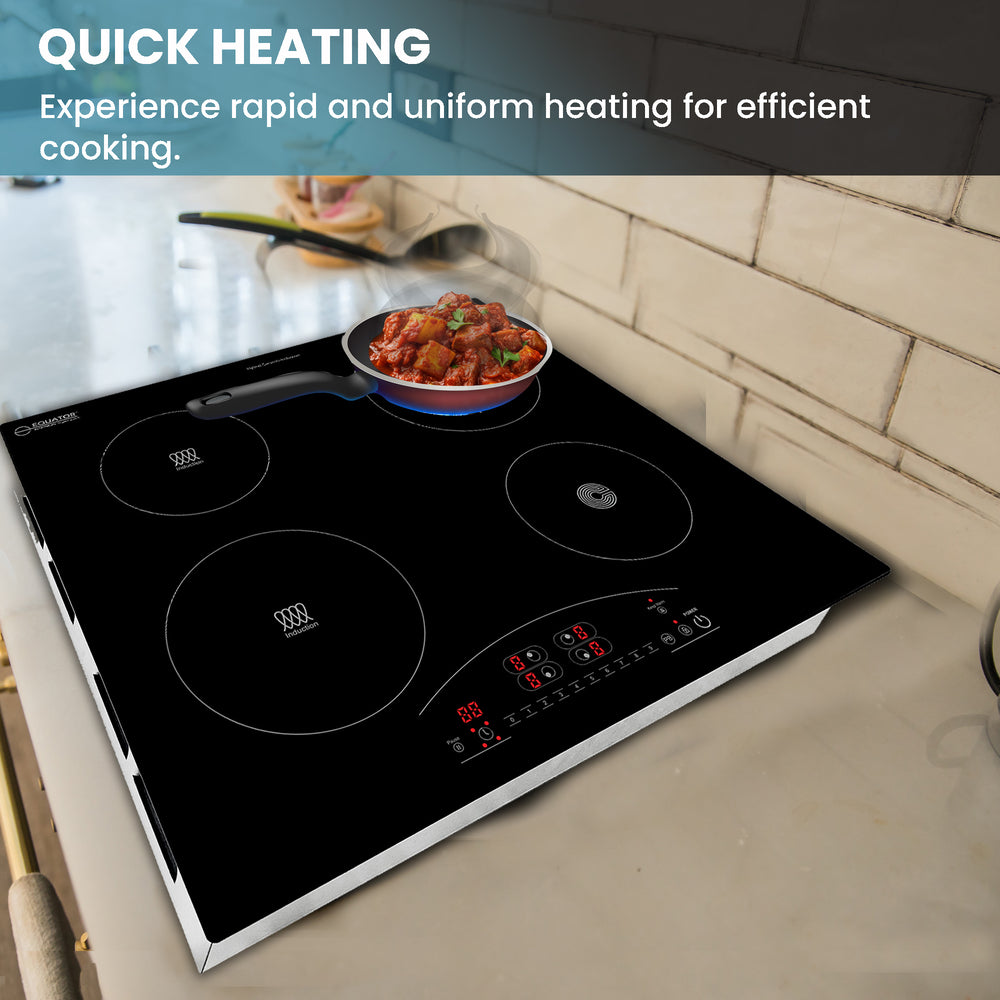

- Powerful Precision- A total of 7100W shared power across 4 burners with boost modes up to 2700W for rapid heating when time is short

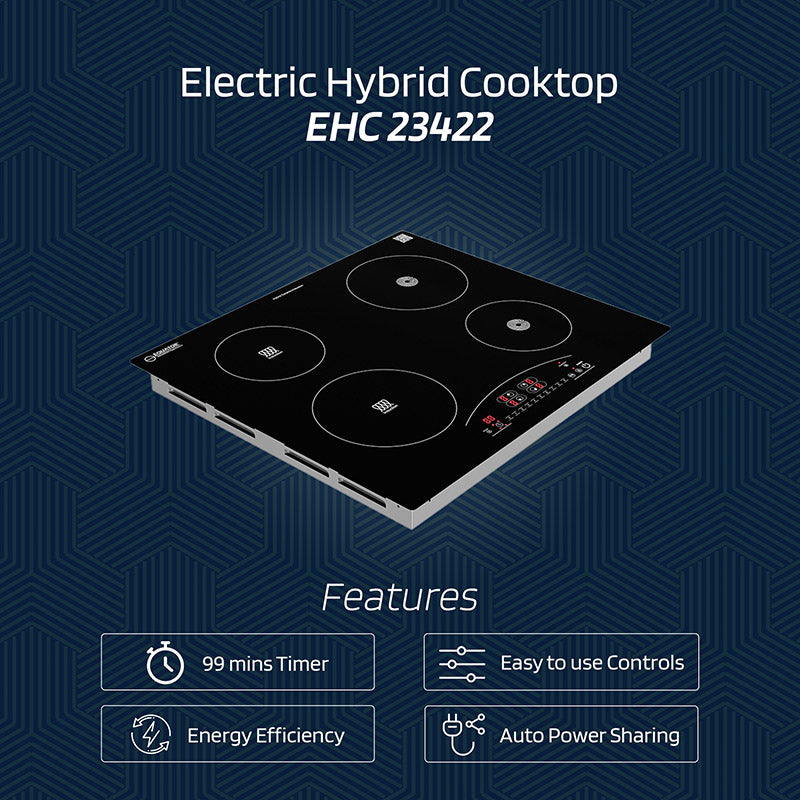

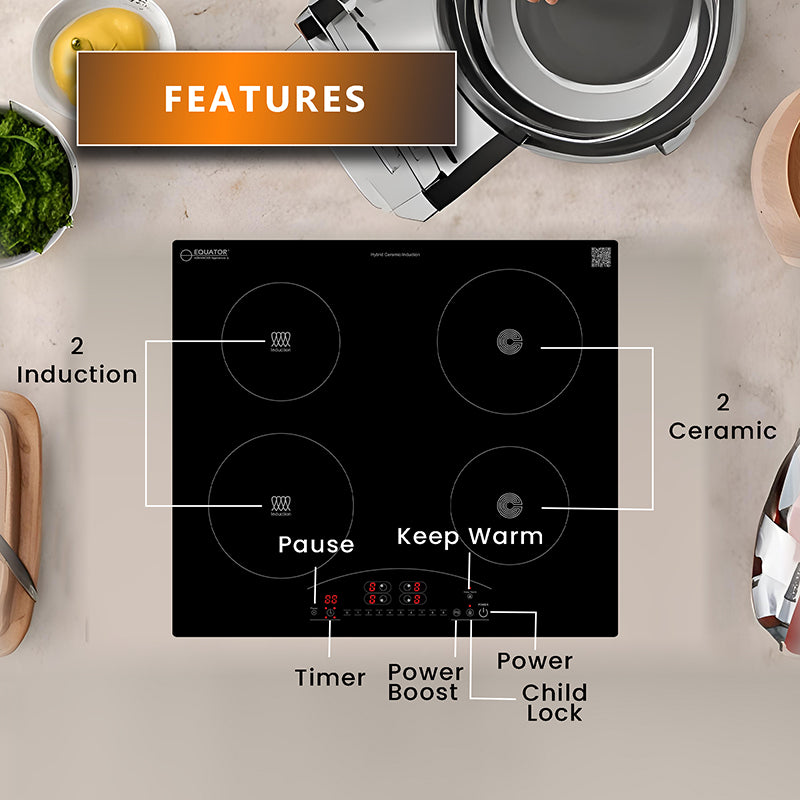

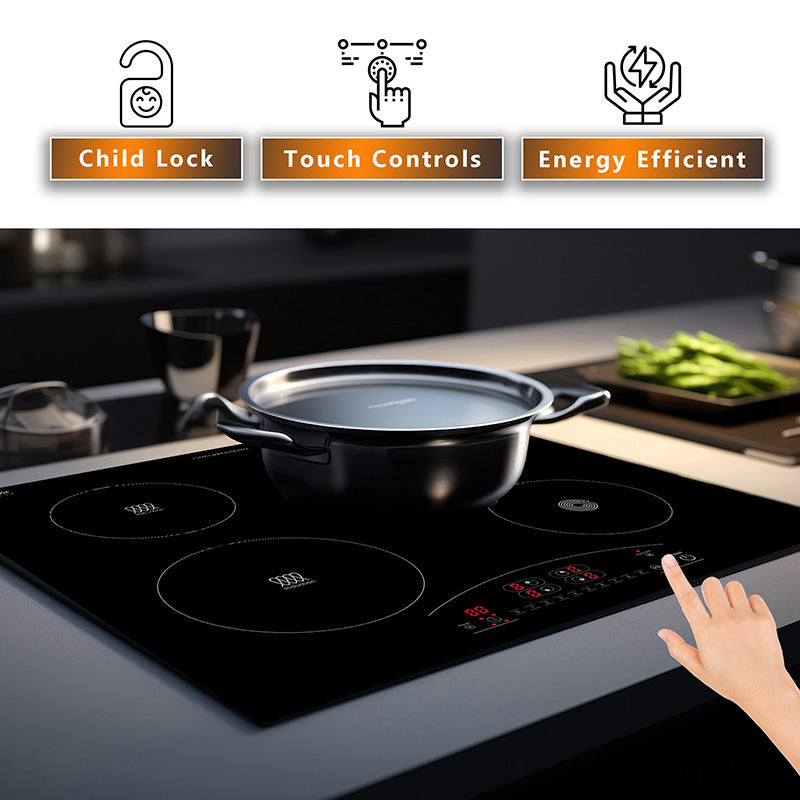

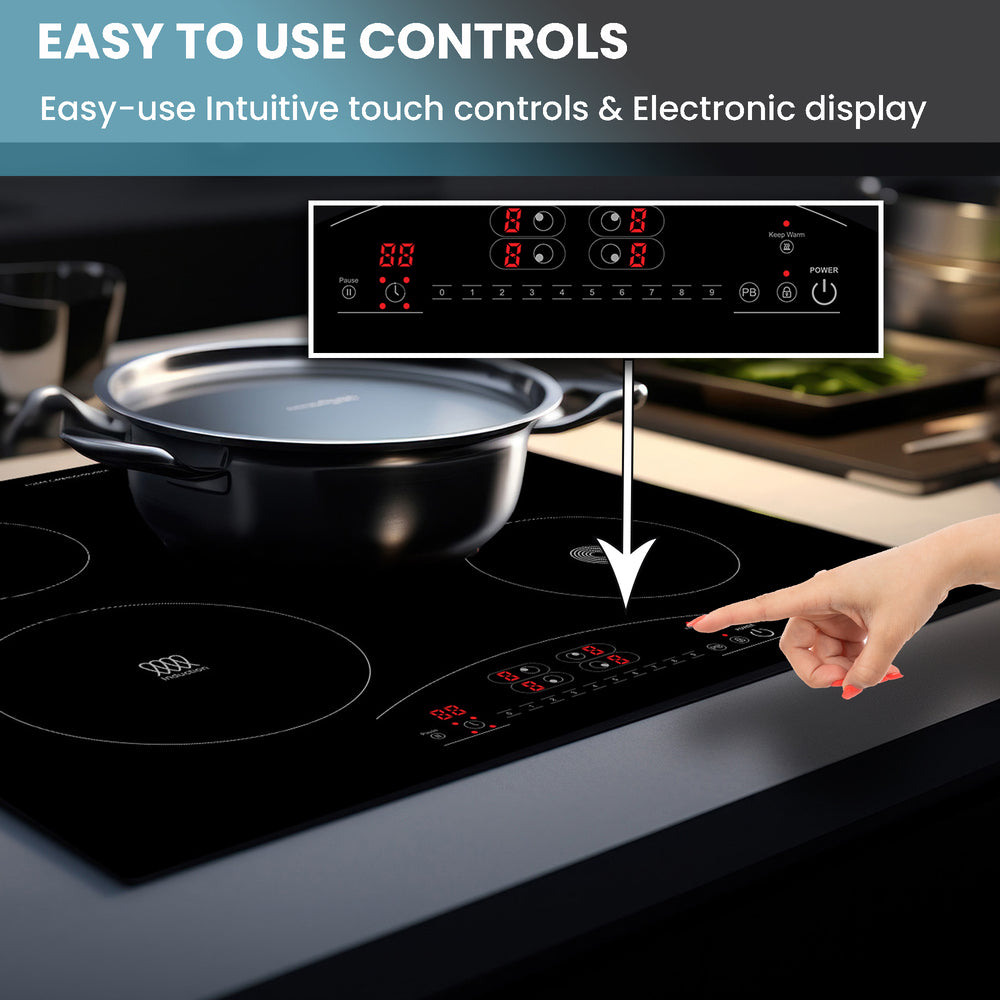

- Touch Control Interface- Sleek and intuitive panel controls 9 power levels, a 99-minute timer per burner, and features like Pause and Keep Warm

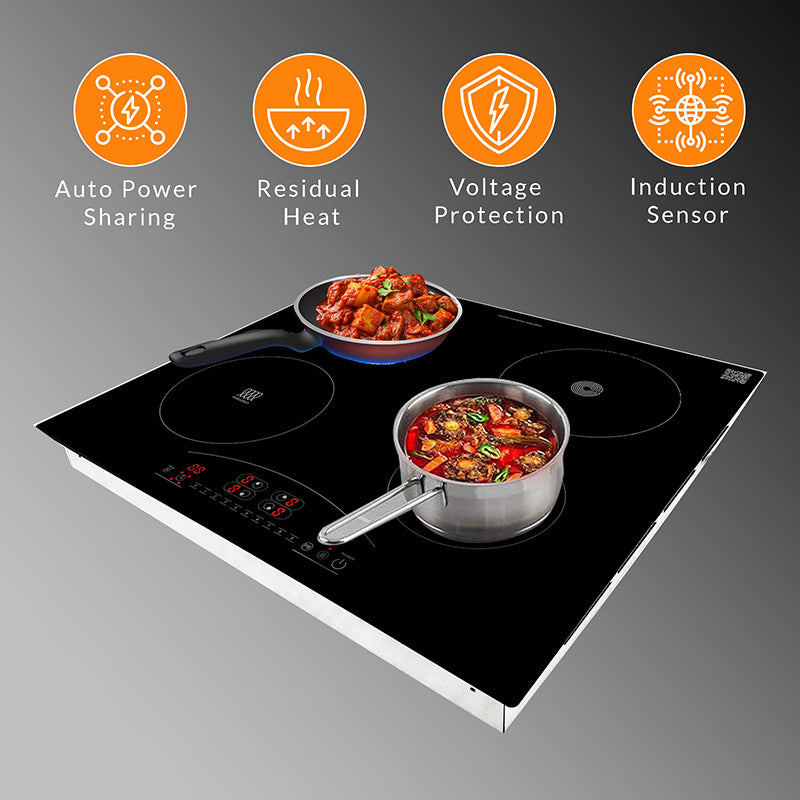

- Auto Power Sharing- Efficiently distributes power across all burners, maintaining performance without overwhelming circuits
- Safety Assured- Equipped with child lock, residual heat indicators, automatic safety shutoff, high/low voltage protection, and failure display function
- Seamless Cooking Surface- Finished in black vitroceramic glass, stylish, durable, and easy to clean
- Engineered for Stability- Built with IGBT technology, delivering fast, even heating and long-lasting performance
- Certified & Protected- ETL and FCC certified, compatible with 220V / 60Hz, and backed by a 1-year parts & labor warranty
| Model | EHC 23422 |
| Color | Black |
| Burners | 4 |
| Electrical | 220V / 60Hz / 30A |
| Total Power / Levels | 7100W / 9 |

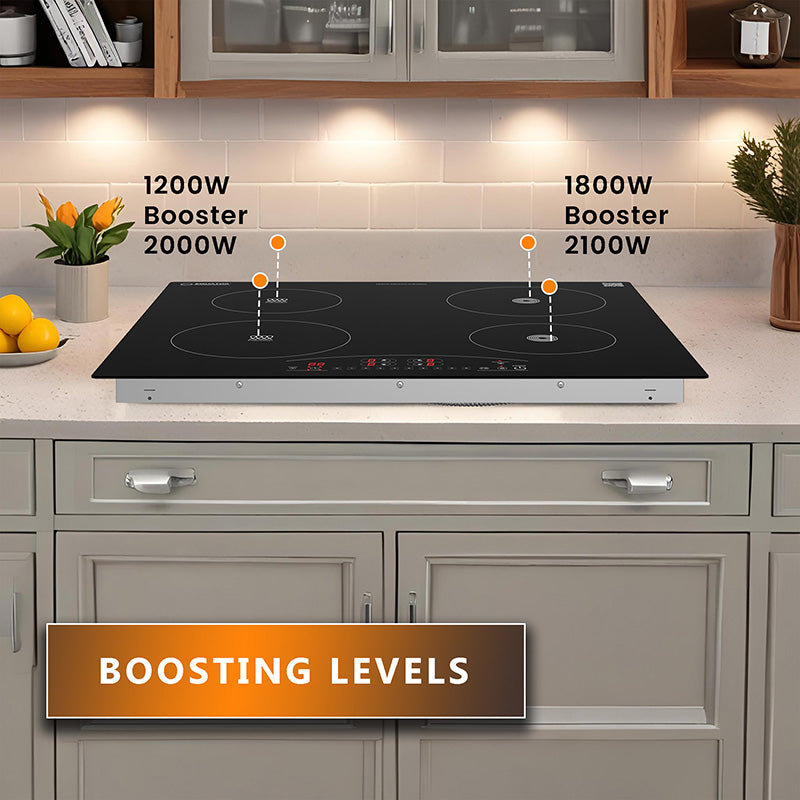

| Left Rear Burner Power | 1200W Booster 2000W / 6.1 inch |
| Left Front Burner Power | 2100W Booster 2700W / 7.5 inch |
| Right Front Burner Power | 1800W / 6.1 inch |
| Right Rear Burner Power | 1200W / 7.5 inch |
| Weight (Net/Gross lbs) | 21.2 / 25.4 |

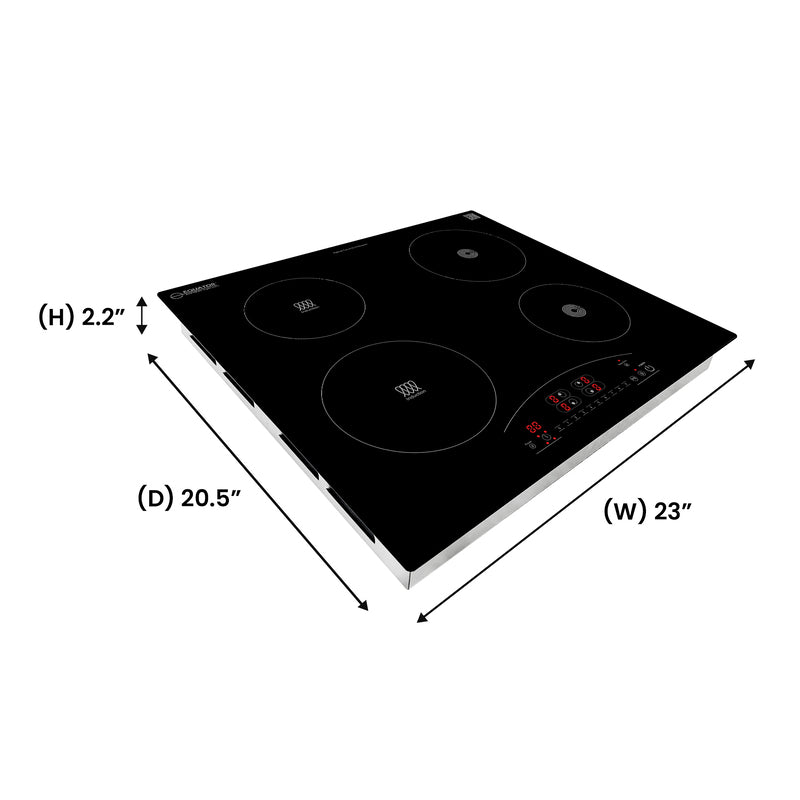

| Product Dimensions HxWxD (inch) | 2.2 x 23 x 20.5 |
| Package Dimensions HxWxD (inch) | 4.8 x 26.8 x 23.8 |
| Cut-out dimensions WxD (inch) | 3.1 x 22 x 19.5 |
| Type of Shipping | FedEx/UPS |
| Certification | ETL, FCC |
| Warranty | 1 Year Parts & Labor |
